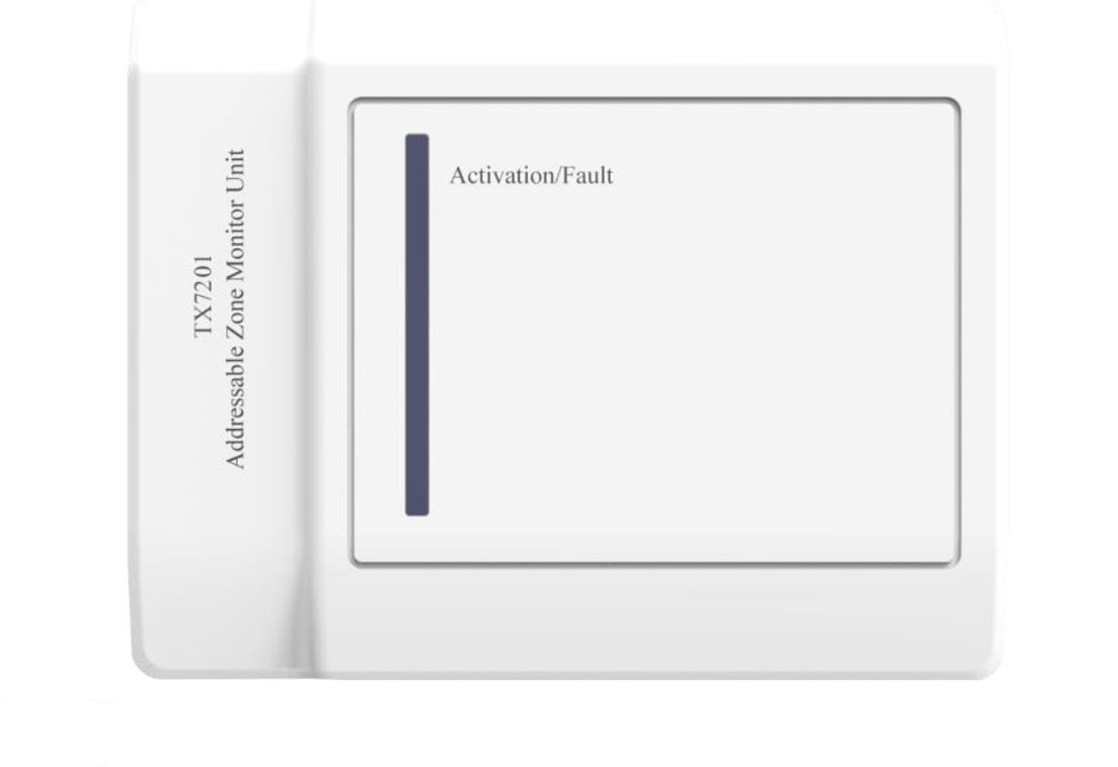

TX7201 Addressable Zone Monitor Unit

TX7201

Addressable Zone Monitor Unit



1 Feature and Benefits

  • EN54-18 Compliance
  • Built-in MCU processor and digital addressing
  • Intelligent self-diagnosis of open circuit
  • LED status indicator
  • Onsite Adjustable Parameter
  • Loop and external power input
  • Aesthetically pleasing design
  • Parallel connecting up to 16 conventional detector
  • Unit mounting with fix base for simple installation
  • Reset Power output, Reset time 6s, Current<60Ma

2 Technical Specification

l

Input Voltage

Loop Power:24VDC [16V to 28V]

External PSU: 20 to 28VDC

l

Current Consumption

Loop: Standby 1.3mA, Alarm: 5mA

External PSU: Standby10mA, Alarm: 60mA

l

Control output voltage

24VDC 60mA

l

End of line Resistance

5.1Kohms/ ¼ W

l

Protocol/Addressing

T&A, Value range from 1 to 254

l

Indicator Status

Normal:   Single   blink/Active:   Steady/Fault:

Double Blink

l

Material / Colour

ABS / White Glossy finishing

l

Dimension / LWH

108 mm x 86 mm x38 mm

l

Weight

154g (with Base), 83g (without Base)

l

Operating Temperature

-10°C to +50°C

l

Ingress Protection Rating

IP30

l

Humidity

0 to 95% Relative Humidity, Non condensing
