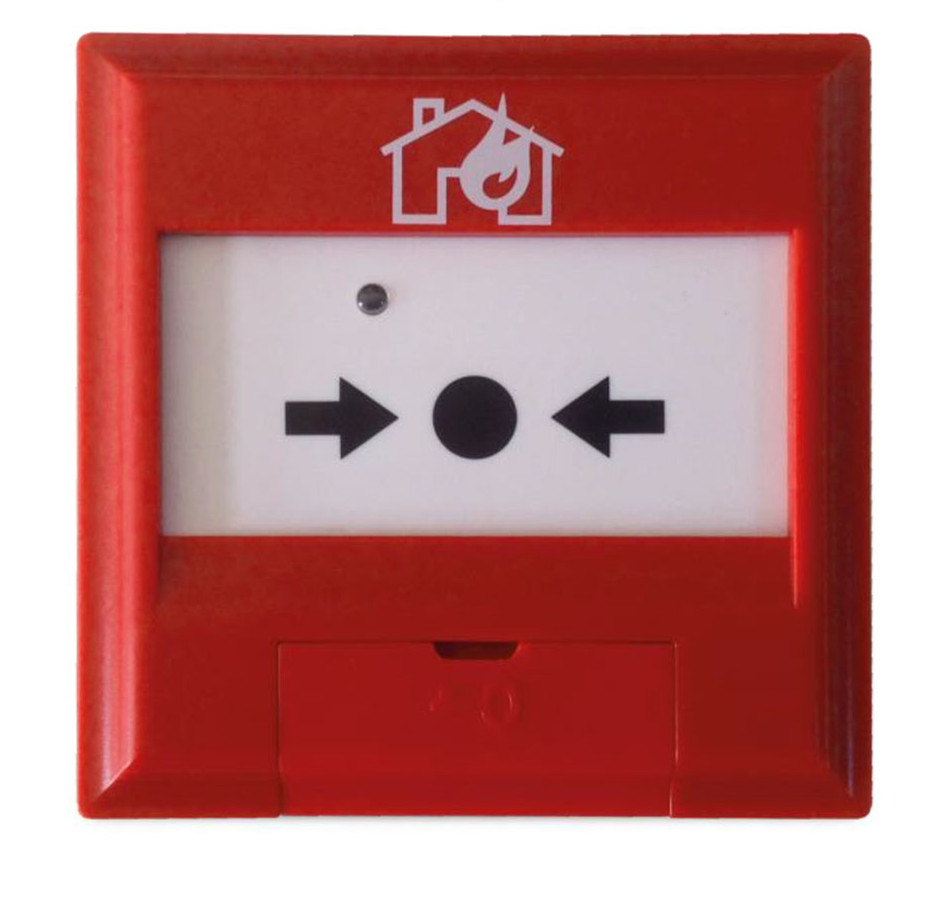

TX7140 Intelligent Manual Call Point


TX7140

Intelligent Manual Call Point



1 Feature and Benefits

  • EN54-11 Compliance
  • Using microprocessor technology
  • Digital addressing
  • Non-breakable glass and hammerless
  • Safe to operate and easy to reset
  • Surface mounted, indoor application

2 Technical Specification

Listed

LPCB Pending

Compliance

EN54-11

Input Voltage

24VDC [16V to 28V]

Current Consumption

Standby

0.6mA, Alarm: 1.1mA

Protocol/Addressing

T&A, Value range from 1 to 254

Indicator

Single LED / Steady On-when pressed

Material / Colour

ABS / RED Glossy finishing

Dimension

95 mm x 95 mm x 46 mm

Weight

148g (with Base), 95g (without Base)

Class

Type A, Indoors

Operating Temperature

-10°C to +55°C

Ingress Protection Rating

IP43

Humidity

0 to 95% Relative Humidity, Non condensing
