Automatic Tracking and Positioning Jet Fire Extinguishing System ZDMS0.6-XF type

Automatic Tracking and Positioning Jet Fire Extinguishing System

ZDMS0.6-XF type


1 Introduction:

Water cannon system is a new type of efficient fire extinguishing product using in large space. With integrated use of infrared and UV sensor technology, built-in CPU and intelligent algorithms, water cannon system satisfies people with its quick and accurate detection of fire, distinguishing fire from authenticity, and automatically taking the initiative to put out fire. The systems monitors protection area in all-day conditions, automatically starts and stop the extinguish system, and can be repeated.

Applicable to exhibition center, trade fair, large shopping malls, supermarkets, department stores, chemical enterprises, oil depots and other buildings.

2 Features and Benefits:

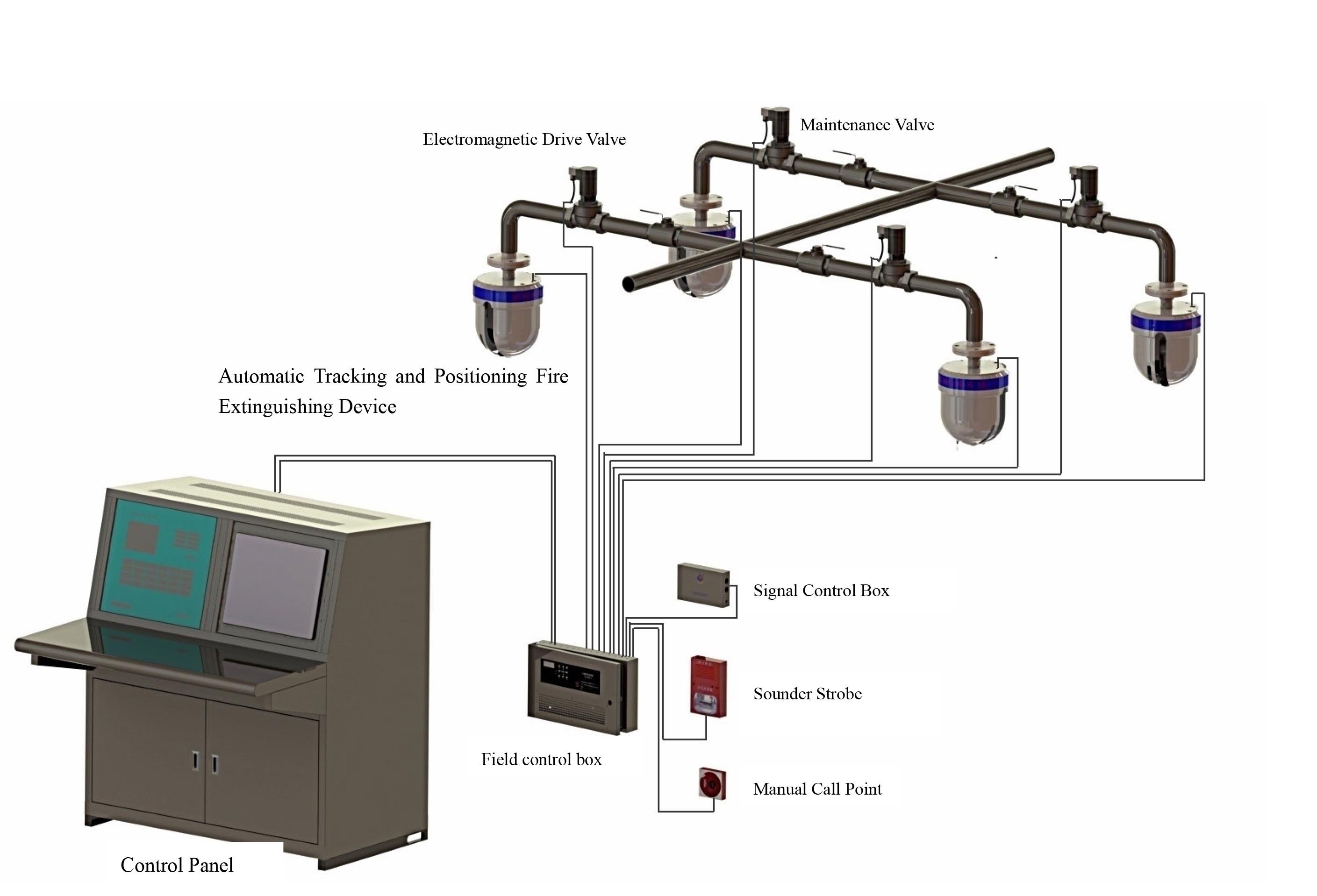

Simple system network, low project cost, easy construction and installation.

Can work with fire alarm system

Remote visual fire extinguishing

Automatically detect the fire and send alarm signals and locate the ignition point

Automatic control, remote manual control and on-site manual control function

Long detection distance, large protection area, fast response, high detection sensitivity

3 Technical Parameters:

Parameter

Unit

Value

ZDMS0.6/5S-XF

ZDMS0.6/10S-XF

Working pressure

V

Center equipment and field control box:AC220

Fire Detection and Extinguishing DC24V.

Power consumption

W

monitoring ≤ 1.5W, scanning ≤ 15W

Standard working pressure

Mpa

0.6

Standard water flow rate

L/S

5

10

Protection radius

m

≤30

≤35

Positioning time

s

≤25

Rotation angle

°

(round trip) Horizontal 0 ~ 360, vertical + 30 ~ -90

Video horizontal evel resolution



520TV Line

Video output



1Vp-p75ohm

Installation interface



DN50 flange connection

Installation height

m

6≤H≤30

Dimensions

mm

250*250*360

Weight

kg

8

Applicable ambient temperature

°C

Temperature-10°C~55°C Humidity:≤95%RH40°C±2°C

Control method

---

Automatic control, central control room remote control, on-site emergency manual control
